Water restoration and remediation
since 2016 EU LIFE+ Project Urban Lake Old Danube – Groundfilter Wasserpark
As part of the project “EU-Life + Urban Lake Old Danube”, the measure “Soil Filter Water Park” was planned as a sustainable solution to improve the water balance of the Upper Old Danube and to increase the calcium content. Ca-rich water is extracted from the New Danube and passed through a soil filter in the water park to the Alte Donau. The supplied water is usually passed through the water park after passage the soil filter, in which a nutrient and suspended matter reduction is done, in the Upper Old Danube. The transfer quantities compensate the hydrological deficit of the Upper Old Danube. The soil filter was built in 2016 and the water law was applied for. The evidence-recovery program to verify the impact of the operation includes hydrological, aquatic ecological and hygienic aspects.
In cooperation with: Fa. Polyplan, Dipl.-Ing. Schattovits Ziviltechniker GmbH, Gruppe Wasser, TB Schuster
Tasks: Water law EOP, operating instructions, limnological preservation of evidence, supervision of online sensors and sampling collectors
Client: City of Vienna MA45

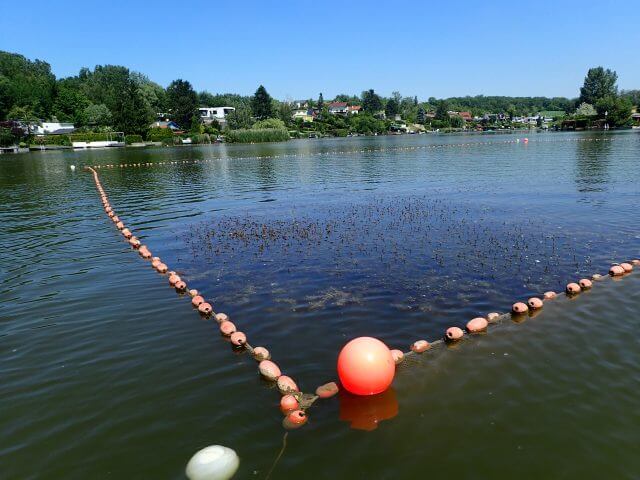

since 2010 Rehabilitation measures at Pöttschinger See
At the beginning of the extensive investigations, the mining lake Pöttsching was eu- to hypertrophic (dissolution of sedimentcomponents in anoxic deep water, high turbidity, intense red-brown coloration after the autumn circulation, unfavorable structure of the food chain, buoyant algae). Following the recording of the lakes morphometry, sediment, nutrient chemistry and food web, the following measures were implemented: sediment treatment and planting of macrophytes in restricted areas, fish stock survey and proposal for fishery management (spawning aids), as well as an installation of a deep water aeration system combined with online monitoring.
Client: Pan.Real Immobilienbeteiligungs GmbH
since 2006 Regulation of the pH buffer capacity of the Old Danube
In order to lower the pH values and increase the buffer capacity in the Old Danube, a water law EOP for the discharge of New Danube water into the Old Danube (“water exchange”) was drawn up in 2006 and submitted to the authorities. The measure includes the discharge of water from the New Danube into the lower Old Danube at the transition structure “Seestern” in the amount of max. 500 L s-1 between 1 July and 30 November and to the same extent, the simultaneous discharge of water from the Old Danube at the diversion structure Floridsdorf in the drainage system of Vienna (MA 30 LDS). Each discharge is augmented by the increased groundwater inflow to “Wasserpark”, due to the lowered water level. Until 2017, the “water exchange” was carried out annually and accompanied by a monitoring program.
in cooperation with: Gruppe Wasser & Donauconsult
Tasks: Measurement of physico-chemical and nutrient-chemical parameters, phytoplankton analysis in the New Danube and Old Danube
Client: City of Vienna MA 45
since 2001 Water level regulation of the Old Danube
In the 1990s, the Old Danube was highly eutrophic. Low depths of visibility and blue-green algae blooms were associated with the near-disappearance of higher aquatic plants. In 1993, the MA 45 led to the preparation of remediation proposals. The aim of the project was i.a. to promote a repopulation with macropytes by a directed lowering of the water level in spring time. The measure, which was operated as a water management experiment in 2002-2005 and subsequently anchored as a water law, brought the desired success. The MA 45, in cooperation with ecologists, is currently pursuing a management and cultivation plan for underwater plants. The concept is to control underwater plant stocks by targeted mowing to the extent that boat and swimming operations can proceed undisturbed, but damage to the crop is avoided.
In cooperation with Gruppe Wasser & Systema GmbH
Contribution of DWS Hydro-Ökologie: limnological monitoring via measurements of physical, chemical and nutritional parameters of the Old Danube and groundwater
Client: city of Vienna MA 45
since 2001 Lake revitalisation via deep water aerator
The function of a deep water aeration system (in German ‘Tiefenwasserbelüftungssysteme’ or short ‘TIBEAN’) is to pump water from the bottom up with an ascending pipe, resulting in an oxygen boost. Via a downpipe the oxygen-enriched deep water is then – after passing a degasser – channeled into a defined depth where it is distributed evenly in all directions. The goal of aeration is to restore sufficient oxygenation, thereby binding nutrients in the sediment, reducing the overall nutrient pool, and increasing the living space of higher organisms. The consequences are a general reduction in the trophic level, a reduction in algae growth and an improvement in the depth of visibility. In cooperation with Polyplan, DWS Hydro-Ökologie has carried out the planning, installation and preservation of the following TIBEANs in Austria: Pöttschinger See (Burgenland), Badesee Steinbrunn (Burgenland), Grundwassersee Watzelsdorf (Lower Austria), Tilgteich (Lower Austria), Bendateich/Buttinger Teich (Vienna), Schellensee (Vienna), Stubenberg (Styria).
Client: private property owners, municipals, associations, city of Vienna MA45
since 1997 Revitalisation and limnological monitoring of the Kahrteich (Wiener Neudorf)
Qualitative and quantitative changes in the groundwater inflow, intensive bathing as well as intensive fishing were probably the causes of eutrophication in the Kahrteich near Wiener Neudorf. First measurements in 1997 showed that in summer the deep water was oxygen free. High ammonium and orthophosphate levels above the sediment and the distinct smell of hydrogen sulfide were causally related to the reducing conditions. As progressive eutrophication would have caused significant damage to fish fauna (including fish mortality) and bathing quality, countermeasures were taken early by the municipality as in autumn 1999 a deep water aeration system was installed. Since then, regular on-site monitoring has been supported by continuous measurements via online probes.
Tasks: Morphometric survey, mapping of sediment thicknesses and estimation of sediment cubatures, physico-chemical measurements in the depth profile and nutrient chemical analyses, zooplankton and phytoplankton surveys, trophic indication based on chironomids, manangement recommendations, water law submission, installation of deep water aeration, monitoring
In cooperation with: Polyplan, TB Schuster and the diving club Wiener Neudorf
Clients: Municipality of Wiener Neudorf

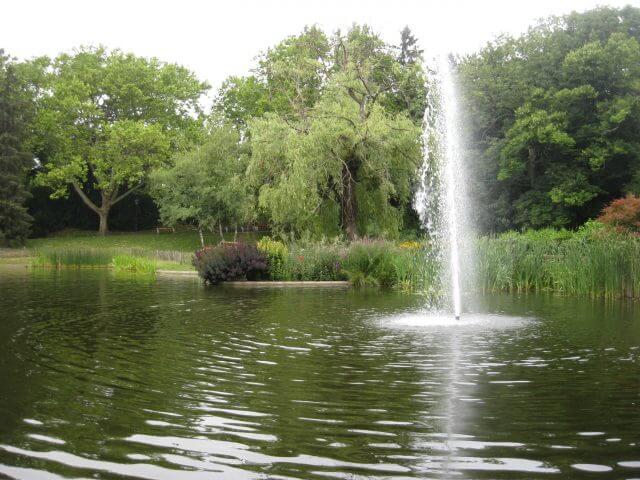

2015 Elaboration of a revitalisation concept for park ponds in Vienna
The municipal authority “Wiener Stadtgärten” (MA 42) is responsible for daily horticultural care and design of various parks in Vienna. Many of these parks contain ponds in various designs, different ages and with diverse claims of utilization. For some of these ponds, the MA 42 found a need for remediation (problems were: sludge deposits, leaking basin or Clay seals, fish mortality) and thus contacted the WGM (Vienna Water Management) and the MA 45 in order to establish a rehabilitation concept. Subsequently the DWS Hydro-Ökologie was commissioned with the preparation of a rehabilitation concept.
Tasks: Research (data basis), inspections of the parks and verification of the remedial needs, deficit analysis, revitalisation concept
Client: City of Vienna MA42 and MA45
2010 Revitalisation of a meromictic lake – Badesee Steinbrunn
The almost 25 m deep Steinbrunner See is a meromictic lake. A strong chemocline prevents wind-induced mixing even in isothermal conditions. Below 10 m, the lake was oxygen-free year-round, just above filamentous blue-green algae accumulated. The goal of aeration in Steinbrunner See was to restore an oxygen-enriched deep zone. In the presence of oxygen, internal nutrient enrichment is blocked and the available nutrient pool for the low-light-adapted blue-green algae at the lower limit of the euphotic zone is minimized. Likewise, potentially catastrophic scenarios, such as fish stock damage due to lack of oxygen or hydrogen sulfide poisoning, can be prevented.
Tasks of the DWS Hydro-Ecology: Preliminary investigations, management plan, water law submission permit, installation of a deep water aeration facility in cooperation with the company Polyplan and an online monitoring in cooperation with the TB Schuster
Client: Municipality Zillingdorf
2010 Restoration concept for Prater waterbodies
As of 2004, partly intensive water ecological investigations were carried out in the Prater waters (Upper and Lower Heustadelwasser, Lusthauswasser, Mauthnerwasser, Krebsenwasser). In 2005 due to enhanced eutrophication in the Lower Heustadelwasser, a restoration plan was set up. Finally, the development of a management concept for all of the Prater waterbodies was commissioned in 2010. The aim was to formulate measures in order to improve the waterquality, to upgrade the ecological status, to preserve waters, as well as to conserve once reached target statuses. All measures were to be reconciled with existing groundwater management for the 2nd and 20th district and additionally with nature conservation requirements.
Client: City of Vienna MA45
2006 Revitalisation of Unteres Heustadelwasser by Neptun plant
In order to improve the water quality, an external soil filter (type “Neptunanlage”) was installed in the Lower Heustadelwasser in 2006. With the help of this water treatment plant, which went into operation in spring 2007, some of the nutrients and suspended solids are being filtered out of the water. The operating principle is as follows: water is withdrawed from the southeastern end of the Lower Heustadelwasser and is sprayed (via spray nozzles) on a ground filter, where supplementary to physical adsorption processes also bacterial degradation processes take place. In the backflow water, an additional P precipitation on iron granulate occurs. Thereafter, the purified water is pumped to the northwestern end of the Lower Heustadelwasser, where it is discharged. After a relatively long period without significant system reaction (resilience), a measurable decline in trophic-relevant parameters was observed for the first time in 2009, and in 2010 a distinctive improvement in the overall condition of the water body and a decline in the summer bloom of blue-green algae could be observed.
In cooperation with Polyplan
Contribution of DWS Hydro-Ökologie: limnological preliminary investigations and monitoring, verification of the cleaning performance of the “Neptunanlage”
Client: City of Vienna MA45
1999-2002 Investigation and preparation of a management concept for Kuchelauer harbor
The Kuchelauer harbor basin has been used for decades by the local population for bathing and recreational purposes and as a rowing regatta route. In the summer of 1998, excessive macrophyte and algae growth was observed for the first time, which significantly limited the recreational value of the Kuchelauer harbor. The water storage of the Freudenau power plant apparently reduced hydrological dynamics in the Kuchelauer harbor, which resulted in more efficent conversion of nutrients by algae and higher aquatic plants. The aim of the study was to develop a management concept based on macrophyte records and surveys on the general aquatic ecological situation.
Tasks for DWS Hydro-Ökologie: Measurements of physico-chemical and nutrient-chemical parameters, analysis of phytoplankton and -benthos
In cooperation with: Systema
Client: City of Vienna MA 45
1999 Feasibility Study for the restoration of the West Lake/Tai-ho (Hanoi, Vietnam)
Aim of the project was to draft a feasibility study for the rehabilitation of the West Lake (Tai-ho) in Hanoi. DWS Hydro-Ecology (formerly Donabaum & Wolfram OEG) was involved with key expert Dr. Georg Wolfram as limnological consultant.
Client: IC Consulenten
